With our mobile X-ray unit all the examinations at the patient’s bedside, as well as for imaging in intensive care units, emergencies and pediatric radiology can be performed.

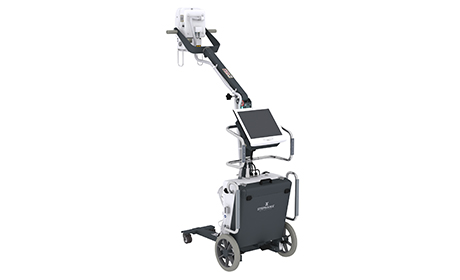

Compact, Motorized Xray mobile Movix DReamy is so maneuverable that you can turn it around in a tight space, such as a hallway, or cross an elevator threshold, thanks to its rolling system design.
Adaptive speed to match your pace, allows you to move up to 5.5 km/h.
Its telescopic arm and retractable column simplify its positioning while taking exposure on a bed or stretcher.
Positioning in a single movement: simultaneous combinations of rotation allow you to move and modify the orientation of the tube and the collimator in all its axes.
The best of Movix DReamy ergonomics.
Sensitive handles, secondary motorization controls, dual collimator control*, touch screen*
(*availability depending on model)
The sensitive technology embedded on the handles gives the mobile a smooth piloting with the control of the speed and the direction, as well as an effortless manipulation of the tube and the collimator.
Motorization controls located on the tube makes it easy to place the mobile without returning to the main unit.
Duplicate collimator controls on its other side is very practical and optimizes accessibility with challenging positioning (cluttered, cramped room …)
Handy and fast with acquisition parameters adjustment on the tube touch screen.
An unobstructed field of vision thanks to its retractable column so you can move around serenely.
Set up the mobile with confidence: the vertical movement is manually controlled, you keep the control of the IV, monitoring or other probes.
Security comes first. User code or an authentication badge enable the use of your Movix Dreamy.
Either way the operator, once authenticated, unlock the mobile and thus can move it to perform exams.
The safety bumpers
stops the movement of the mobile as soon as it collides.
The proximity sensors (optional) detect an obstacle, according to a predefined safety distance, greatly slow down the speed of the mobile and trigger Tube’s LED flashing in blue: a double warning to the user of an imminent potential collision.
The wireless remote control allows the light filed to be turned on and to trigger exposure from a distance up to 10m.
Color coded LEDs indicate the status of your mobile and guide you in the preparation of the exam.
Blue: system ready
Green: tube ready
Yellow: exposure
Red: system error
Movix DReamy has a build in acquisition console with a 19” touch interface allowing you to perform all types of examinations.
Thanks to the intuitiveness of the software, you will be able to easily select a patient in the Worklist or do a manual patient entry and choose your protocols.
The Scatter Correction option (commonly known as Virtual Grid) is performed automatically by the software and can be applied to all anatomical areas (as selected by the user).
It is an image processing algorithm that improves the contrast by subtracting the scattered noise.
No need for a grid therefore, it’s easier to use (no grid to handle) with dose reduction to the patient also available for pediatric examinations.
It also reduces operator and patient exposure due to misalignment and/or artifacts of the focused grid.
In addition to the optional scatter correction, the dedicated pediatric protocols, the collimation & filters (option) programmed for each anatomical protocol, the Dose Surface Product (DSP) indicated for each image and the DICOM MPPS and RDSR functions (automatic sending of examination data such as DSP and acquisition constants) are all tools that help you manage the dose delivered.
Revision date: May 2024
